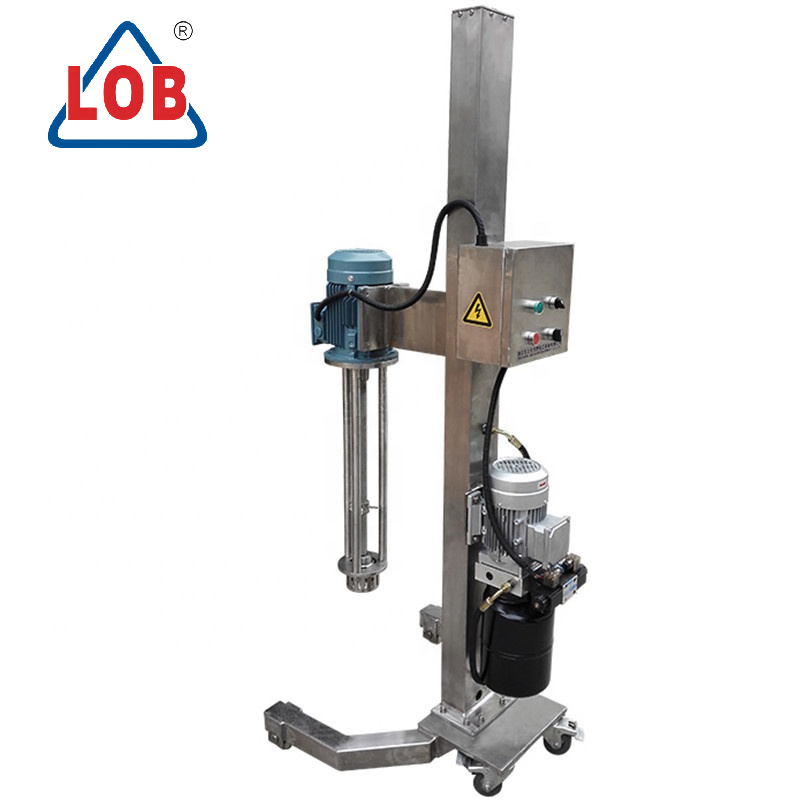

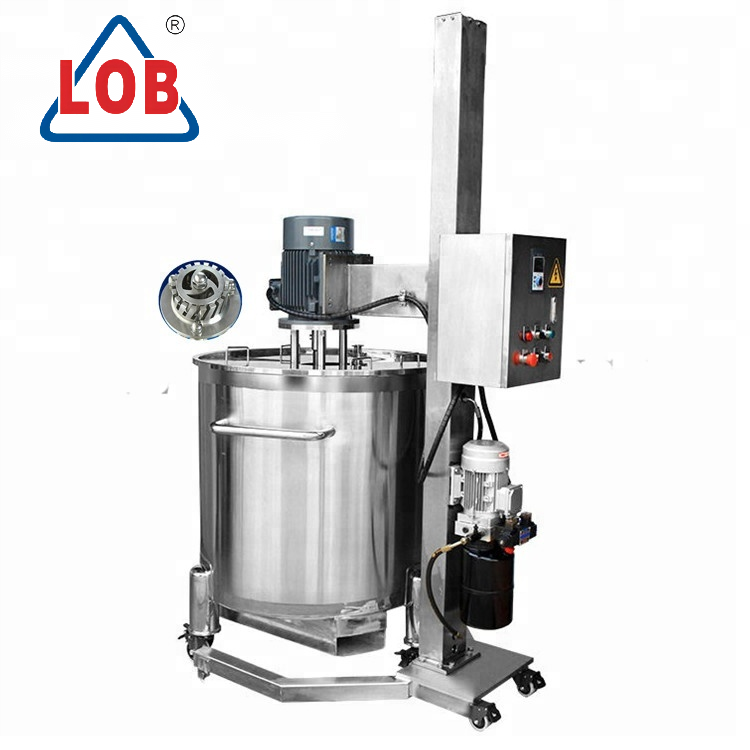

High shear mixer/homogenizer with hydraulic lift
LOB's High Shear Mixer with Hydraulic Lift – a leap forward in blending technology. Crafted for precision and ease, this mixer transforms processes across industries. Trust LOB for cutting-edge solutions that redefine industry norms.
Key features:
- Mixing Capacity: customized
- Mixing Speed: Adjustable, up to 2800 or 3600 RPM
- Hydraulic Lift: Manual or automated hydraulic lift system
- Construction Material: Stainless steel 304or 316L
[Usage and Benefits]
- Powerful Mixing: The High Shear Mixer with Hydraulic Lift offers efficient and powerful mixing for various applications.
- Hydraulic Lift System: Equipped with a hydraulic lift mechanism for easy lifting and lowering of the mixing head.
- Versatile Mixing Options: Adjustable mixing speeds and blade configurations to suit different viscosities and processes.
- Durable Construction: Built with high-quality materials for reliability and long-term performance.
- Mixing Capacity: customized
- Mixing Speed: Adjustable, up to 2800 or 3600 RPM
- Hydraulic Lift: Manual or automated hydraulic lift system
- Construction Material: Stainless steel 304or 316L
- Power Requirement: customized
High shear mixer: Technical Specifications
| Model | Powder(KW) | Speed(rpm) | Standard Length(mm) | Capacity(L/H) |
| BRH-80 | 1.1 | 2800 | 350 | 10-40 |
| BRH-90 | 1.5 | 2800 | 350 | 10-50 |
| BRH-100 | 2.2 | 2800 | 650 | 50-100 |
| BRH-120 | 3 | 2800 | 750 | 100-200 |
| BRH-120A | 4 | 2800 | 750 | 100-300 |
| BRH-140 | 5.5 | 2800 | 900 | 200-600 |
| BRH-140A | 7.5 | 2800 | 900 | 200-800 |
| BRH-160 | 11 | 2800 | 1050 | 500-1500 |
| BRH-180 | 18.5 | 2800 | 1200 | 600-2000 |
| BRH-200 | 22 | 1400 | 1200 | 800-2500 |
| BRH-220 | 30 | 1400 | 1355 | 1000-3500 |
| BRH-240 | 45 | 1400 | 1395 | 1500-5000 |
| BRH-270 | 55 | 1400 | 1600 | 2000-8000 |
| BRH-290 | 75 | 1400 | 1650 | 3000-10000 |
[User Guide]
- Set up the mixer on a stable surface and connect it to the power source.
- Adjust the hydraulic lift system to position the mixing head over the mixing vessel.
- Add the materials to be mixed to the vessel.
- Start the mixer and adjust the mixing speed as needed.
- After mixing, lower the mixing head, and perform routine cleaning and maintenance.
- Ensure proper setup and connections before operation.
- Carefully follow the user manual's instructions for safe and effective operation.
- For further assistance, please contact our customer support team.
- Package Includes: user manual, 24/7 customer support
- Warranty: 1-year full warranty
