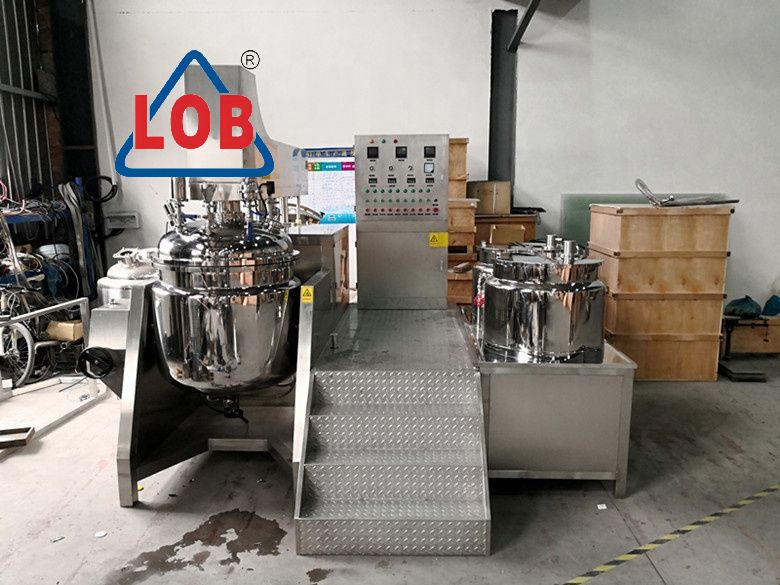

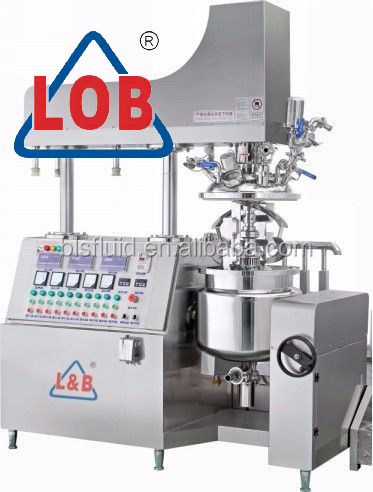

Vacuum Homogenizer System With Oil Tank and Water Tank
[Usage and Benefits]

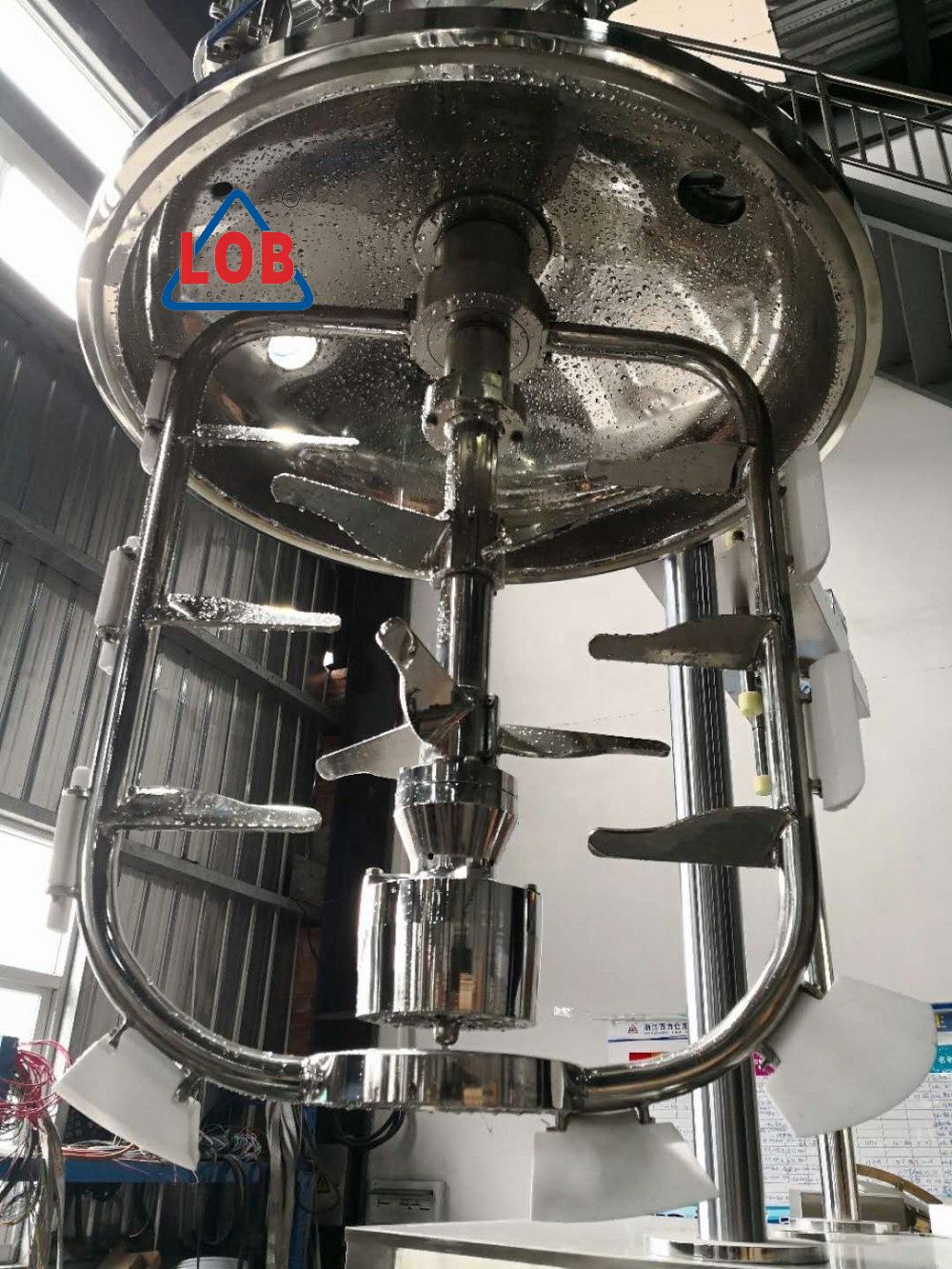

- Triple Agitator System: Uniquely equipped with three agitators - wall scraper, paddle, and Homogenizer - ensuring thorough blending and dispersion.
- Effortless Viscosity Handling: Designed to handle creams and emulsions with viscosities ranging from 10,000 to 50,000cps.
- Optimized Mixing Action: Employs a top-mounted batch homogenizer for efficient internal emulsifying and homogenizing.
- Integrated Vacuum System: Equipped with a vacuum system to eliminate air and enhance product homogeneity.
- Capacity: 50 l to 2000 l
- Motor Power: Look the sheet below
- Construction: Material: Stainless steel 304 or SS316L
- Control System: Intuitive touchscreen for easy operation or button control
- Motor Type: Three-phase electric motor
Vacuum homogenizer mixer: Technical Specifications
| Working capacity (L) | Agitator power (kw) | Speed (rpm) | Homogenizer power (kw) | Speed (rpm) | Oil/Water tank (L) | Agitator power (kw) | Speed (rpm) |
|---|---|---|---|---|---|---|---|
| 50 | 1.5 | 0~50 | 4 | 0~3600 | 30/30 | 0.25/0.25 | 960 |
| 100 | 1.5 | 0~50 | 4 | 0~3600 | 50/70 | 0.37/0.37 | 960 |
| 150 | 1.5 | 0~50 | 4 | 0~3600 | 80/100 | 0.55/0.55 | 960 |
| 200 | 1.5 | 0~50 | 4 | 0~3600 | 100/130 | 0.75/0.75 | 960 |
| 250 | 2.2 | 0~50 | 5.5 | 0~3600 | 120/160 | 0.75/0.75 | 960 |
| 300 | 2.2 | 0~50 | 5.5 | 0~3600 | 150/200 | 0.75/0.75 | 960 |
| 350 | 2.2 | 0~50 | 5.5 | 0~3600 | 170/220 | 1.1/1.1 | 960 |
| 400 | 3.7 | 0~50 | 7.5 | 0~3600 | 190/250 | 1.1/1.1 | 960 |
| 500 | 3.7 | 0~50 | 7.5 | 0~3600 | 250/300 | 1.1/1.1 | 960 |
| 600 | 3.7 | 0~50 | 7.5 | 0~3600 | 280/350 | 1.5/1.5 | 960 |
| 750 | 5.5 | 0~50 | 11 | 0~3600 | 350/450 | 1.5/1.5 | 960 |
| 1000 | 5.5 | 0~50 | 15 | 0~3600 | 450/650 | 2.2/2.2 | 960 |
| 1500 | 7.5 | 0~50 | 18.5 | 0~3600 | 650/1000 | 2.2/2.2 | 960 |
| 2000 | 7.5 | 0~50 | 18.5 | 0~3600 | 800/1400 | 2.2/3 | 960 |
[User Guide]
- Connect to the appropriate power source.
- Activate the touchscreen and set the required parameters.
- Place cosmetic ingredients into the provided container.
- Utilize the lifting and tilting feature to facilitate filling and material pouring.
- Monitor the homogenization process via the touchscreen and ensure high-quality homogenized results.
- Ensure stable power supply when using the device.
- Read the user guide carefully before operating the device.
- For further assistance, please contact our customer support team.
- Package Includes: Lobe Pump, user manual, 24/7 customer support
- Warranty: 1-year full warranty
